90W Power Supply-AK80WG Series Desktop Series Power Supply

90W Continuous Power for Electronic Equipment

The 90W continuous output rating is an important consideration for equipment that requires more power than lower-wattage adapters while not requiring a substantially higher-capacity desktop power supply.

For OEM and product engineers, the appropriate power rating should be determined by the actual electrical requirements of the end device. Continuous operating consumption, maximum expected load, startup requirements, and the required output configuration should all be evaluated before selecting a power supply.

A 90W power supply can therefore provide an intermediate capacity option for equipment positioned between lower-power adapters and higher-power desktop power supplies. The actual suitability of the AK80WG Series depends on the output voltage, output current, connector configuration, and other electrical requirements of the target equipment.

Wide 90–264VAC Input Range

The AK80WG Series has a rated input voltage of 100–240VAC and an operating input range of 90–264VAC. This wide AC input range allows the same power supply platform to accommodate a broad range of AC supply conditions.

For manufacturers selling electronic products across multiple regions, a universal-input power supply can simplify product planning because the input side does not need to be restricted to a single nominal AC voltage. OEM buyers can evaluate the same power supply platform for different markets while confirming the applicable regional requirements for the complete product.

The rated input frequency is 50/60Hz, with a specified frequency variation of ±3Hz. These specifications provide important reference points when evaluating the power supply against the intended electrical environment.

Desktop Form Factor for External Power Applications

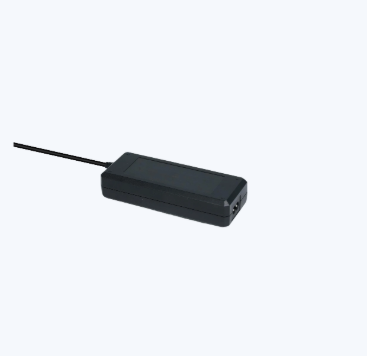

The AK80WG Series uses a desktop power supply configuration with dimensions of 146.5 × 58 × 32mm. Compared with an integrated power supply, an external desktop design allows the power conversion circuitry to remain outside the main electronic device.

This approach can be useful when internal PCB space is limited or when the equipment structure requires a separate external power source. It also gives product designers more flexibility when planning the internal layout of the powered equipment.

The physical dimensions should be considered together with the available installation space, cable routing, ventilation conditions, and placement requirements of the final product. OEM customers should verify the complete mechanical configuration during product development rather than evaluating the power supply dimensions independently.

Flexible IEC60320 AC Inlet Options

The AK80WG Series supports IEC60320-1 C6, C8, and C14 AC inlet configurations. Offering multiple inlet options gives OEM customers flexibility when specifying the AC connection according to their equipment design and project requirements.

The appropriate inlet configuration can depend on the final product structure, power cord arrangement, regional requirements, and installation method. During procurement, manufacturers should confirm the required inlet configuration together with the electrical and mechanical specifications.

This consideration is particularly relevant for projects where the same basic power supply platform may be configured for different equipment designs or market requirements.

Output Ripple and Noise Performance

The AK80WG Series specifies maximum output ripple and noise of 300mVp-p. Ripple and noise represent unwanted AC components present on the DC output of a switching power supply.

Controlling these disturbances is important for electronic equipment because excessive output ripple or noise can affect circuits that require a stable DC power source. For this reason, OEM engineers should compare the power supply's ripple and noise specification with the requirements of the target equipment during the selection process.

The 300mVp-p maximum specification provides a measurable reference for evaluating the output characteristics of the AK80WG Series. Final system validation should still be conducted with the actual load, cable configuration, and end equipment.

Energy Efficiency for Long-Term Operation

The AK80WG Series has a minimum efficiency specification of 88% and supports DoE VI, CEC VI, and ErP VI efficiency levels.

Power supply efficiency indicates how effectively input electrical power is converted into usable output power. A portion of the input energy is inevitably lost during power conversion, and these losses can contribute to heat generation.

For electronic equipment operating for extended periods, efficiency can therefore influence both energy consumption and thermal conditions. Selecting an appropriately efficient external power supply can support the overall energy-performance objectives of the finished product.

OEM buyers should evaluate efficiency together with output power, load conditions, operating temperature, and applicable market requirements rather than considering efficiency as an isolated specification.

Protection Functions for Abnormal Conditions

The AK80WG Series incorporates several protection functions, including Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).

These functions address different abnormal operating conditions. OVP is intended to respond to excessive output voltage conditions, while OCP addresses excessive current conditions. SCP provides protection in the event of a short-circuit condition, and OTP addresses excessive temperature conditions.

Protection functions are particularly important in external power supplies because the power supply operates as part of a complete electronic system. Their effectiveness and behavior should be evaluated according to the actual application and relevant product requirements.

Operating Temperature and Product Integration

The specified operating temperature range of the AK80WG Series is -10°C to 35°C. This specification should be considered during product integration, especially when the power supply is used in equipment operating continuously or in environments with changing ambient temperatures.

The final installation should provide appropriate conditions for the power supply's specified operating range. OEM engineers should consider ambient temperature, equipment placement, ventilation, load level, and surrounding heat sources when validating the complete system.

The 146.5 × 58 × 32mm enclosure also provides a clear reference for mechanical integration. Product designers can use these dimensions when planning the external power supply position, cable routing, and available installation space.

Safety and EMC Requirements

The AK80WG Series includes specifications referencing UL/cUL62368-1, IEC61558-1, EN61558-1, GB4706.1, J61558-1, and AS/NZS61558-1, together with EMC-related standards including EN55032, EN55014, EN55035, FCC Part 15B, GB9254, and GB17625.1.

The product also references requirements covering electrostatic discharge, radiated immunity, electrical fast transients, surge immunity, harmonic current emissions, and voltage fluctuation and flicker.

For OEM projects, safety and EMC requirements should be evaluated according to the final product, target market, and applicable regulatory framework. The power supply specification provides an important starting point for this evaluation, while final compliance depends on the complete equipment and its intended application.

OEM Selection Considerations for a 90W Power Supply

When selecting a 90W power supply for an OEM project, manufacturers should evaluate more than the nominal wattage. The required output voltage and current, continuous load, AC input range, connector configuration, enclosure dimensions, operating temperature, efficiency, protection functions, and applicable safety and EMC requirements should all be confirmed.

The AK80WG Series provides a combination of 90W continuous power, 90–264VAC operating input, desktop construction, multiple IEC60320 inlet options, 300mVp-p maximum ripple and noise, minimum 88% efficiency, and multiple protection functions.

For projects requiring a 90W desktop power supply, these specifications provide a practical basis for preliminary selection. Final compatibility should be confirmed against the complete electrical, mechanical, environmental, and regulatory requirements of the target equipment.
