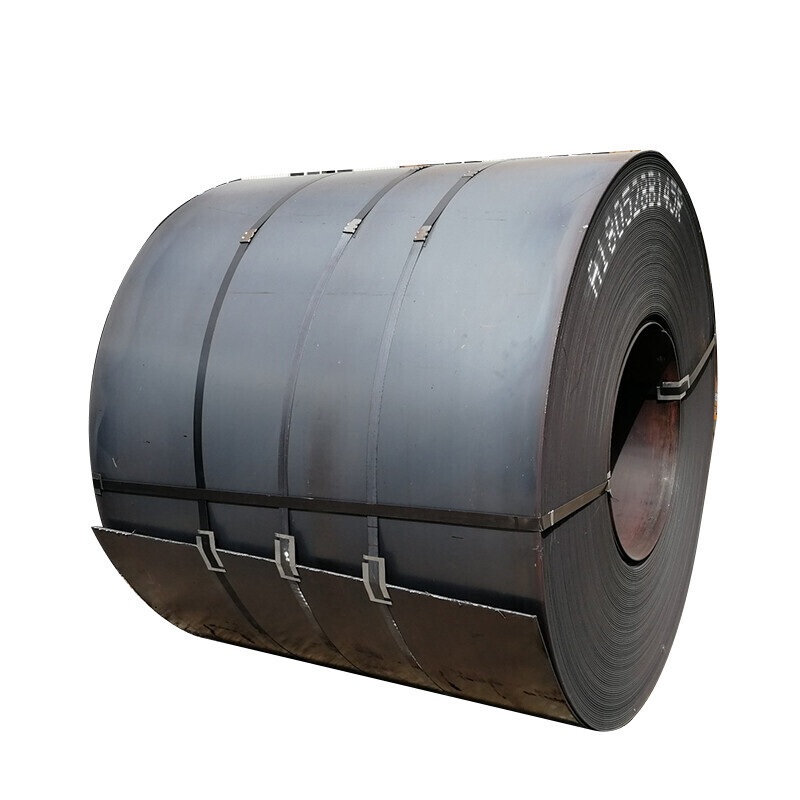

A283/Q195 Cold Rolled Steel Coil

A283 steel coil exhibits excellent work hardening properties during cold forming for its high strength and plasticity. After repeated cold working deformation, the coil can still show similar strength and hardness, with even better ductility and toughness. In addition, due to its good welding performance, the coil can be easily welded into parts of various shapes and sizes, and the welding quality is stable and reliable. A283 steel coils are widely used in the manufacturing of various mechanical parts, such as bolts, nuts, pins and other standard parts as well as various non-standard mechanical parts. In addition, they are also used in the manufacture of building structural materials.

Product Description

Product Name	A283/Q195 Cold Rolled Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A283	Cmax.	Mnmax.	Pmax.	Smax.	Si (Greater1 inch, less than 1/2 inch)	Si (Greater 1/2 inch)	Cumin.
Grade A	0.14	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade B	0.17	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade C	0.24	0.90	0.035	0.04	0.40	0.15-0.40	0.20
Grade D	0.27	0.90	0.035	0.04	0.40	0.15-0.40	0.20

Mechanical Properties

A283	Tensile Strength		Yield Strength min.		Elongation Rate 8 inches	Elongation Rate 2 inches
Grade A	45000-60000 psi	310-415 MPa	24000 psi	165 MPa	27 % min.	30 % min.
Grade B	50000-65000 psi	345-450 MPa	27000 psi	185 MPa	25 % min.	28 % min.
Grade C	55000-75000 psi	380-515 MPa	30000 psi	205 MPa	22 % min.	25 % min.
Grade D	60000-80000 psi	415-550 MPa	33000 psi	230 MPa	20 % min.	23 % min.

Physical Performance

Physical Performance	Metric	Imperial
Density	7.80 g/cc	0.282 lb/in³

Scope of Application

ASTM A283 steel plate is a kind of low carbon steel with high strength and
good formability. It is easy to process and manufacture, and can be safely
welded by various welding methods. ASTM A283 steel plate is a structural carbon
steel plate used for low or medium tensile strength applications. ASTM A283
steel plate is used in the manufacture of riveted, bolted and welded structures
for storage tanks and cryogenic control vessels, bridges and buildings,
including prefabricated buildings, warehouses and industrial commercial
structures.
