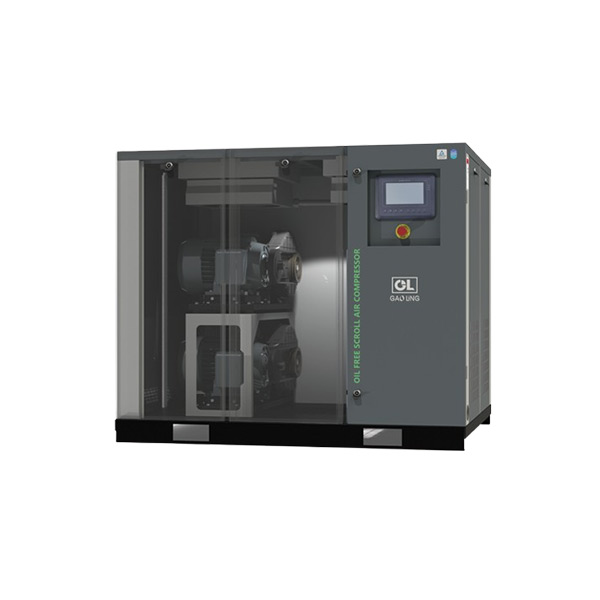

Belt Type Compressor 2.2KW–55KW
● Use power frequency motor
● Equipping with 1-10 units in one compressor
● Compact internal structure
● Scientific air circulation heat dissipation
● Intelligent control panel
● Meet various working conditions
Belt Type Compressor 2.2KW–55KW
Reference Pictures
The application areas of our products
Oil-free scroll air compressors have a wide range of applications and are mainly used in industries that have high requirements for air cleanliness.
Medical industry: Hospital air compressor station; Dental clinic; Oxygen generator —- Provide a stable and pure gas source.
Food industry: Food packaging; filling production line —- Avoid oil contamination.
Electronic and semiconductor industry: Precision manufacturing; Chip production —- Ensure a dust-free environment.
Pharmaceutical industry: Gas transportation, stirring —- To ensure a aseptic environment.
Environmental protection industry: Waste disposal; Power control —- Reducing pollution.
Research industry: Biological laboratory —- Oil-free air maintains a clean environment.
Technical Specifications
|
TYPE |
MODEL NO. |
POWER |
POWER |
RATED PRESSURE |
VOLTAGE |
CAPACITY |
DIMENSION |
WEIGHT |
|
G03TY BELT DRIVE |
L03T-Y22-8X |
2.2 |
3 |
0.8 |
3N |
0.24 |
600*560*800 |
100 |
|
G05TY BELT DRIVE |
L05T-Y37-8X |
3.7 |
5 |
0.8 |
3N 380V 50Hz |
0.4 |
600*560*800 |
112 |
|
L05T-Y75-8 |
7.5(3.7*2) |
10 |
0.8 |
1180*760*1250 |
280 |
|||
|
L05T-Y110-8 |
11(3.7*3) |
15 |
1.2 |
1180*760*1690 |
496 |
|||
|
L05T-Y150-8 |
15(3.7*4) |
20 |
1.6 |
1500*1180*1250 |
554 |
|||
|
L05T-Y185-8 |
18.5(3.7*5) |
25 |
2.0 |
1420*1010*1510 |
808 |
|||
|
L05T-Y220-8 |
22(3.7*6) |
30 |
2.4 |
1420*1010*1510 |
878 |
|||
|
L05T-Y260-8 |
26(3.7*7) |
35 |
2.8 |
1650*1550*1950 |
1041 |
|||
|
L05T-Y300-8 |
30(3.7*8) |
40 |
3.2 |
1650*1550*1950 |
1110 |
|||
|
L05T-Y330-8 |
33(3.7*9) |
45 |
3.6 |
1650*1550*1950 |
1200 |
|||
|
L05T-Y370-8 |
37(3.7*10) |
50 |
4.0 |
1650*1550*1950 |
1350 |
|||
|
G06TY BELT DRIVE |
L06T-Y55-8 |
5.5 |
7.5 |
0.8 |
3N 380V 50Hz |
0.6 |
680*640*960 |
151 |
|
L06T-Y110-8 |
11(5.5*2) |
15 |
1.2 |
1180*760*1250 |
350 |
|||
|
L06T-Y165-8 |
16.5(5.5*3) |
22 |
1.8 |
1180*760*1690 |
556 |
|||
|
L06T-Y220-8 |
22(5.5*4) |
30 |
2.4 |
1500*1180*1250 |
643 |
|||
|
L06T-Y275-8 |
27.5(5.5*5) |
37 |
3.0 |
1500*1180*1690 |
785 |
|||
|
L06T-Y330-8 |
33(5.5*6) |
45 |
3.6 |
1500*1180*1690 |
870 |
|||
|
L06T-Y385-8 |
38.5(5.5*7) |
53 |
4.2 |
1650*1550*1500 |
1200 |
|||
|
L06T-Y440-8 |
44(5.5*8) |
60 |
4.8 |
1650*1550*1500 |
1220 |
|||
|
L06T-Y495-8 |
49.5(5.5*9) |
67 |
5.4 |
1650*1550*1950 |
1330 |
|||
|
L06T-Y550-8 |
55(5.5*10) |
75 |
6.0 |
1650*1550*1950 |
1420 |
