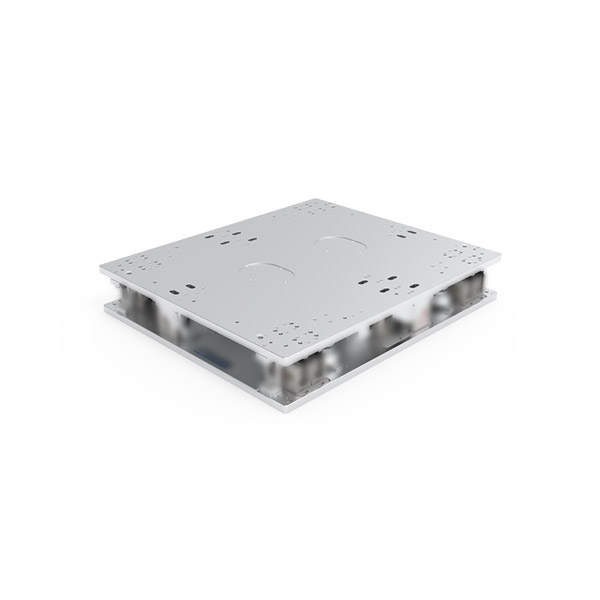

FSD Series
The FSD series active vibration isolation platform integrates four vibration isolation modules into one platform. Each module uses coil springs as the main support to achieve tri-directional vibration
Product Model:
FSD100A Vibration Damping
FSD100B Vibration Damping
Introduction:
The FSD series active vibration isolation platform integrates four vibration isolation modules into one platform. Each module uses coil springs as the main support to achieve tri-directional vibration isolation. Combined with active vibration control in both vertical and horizontal directions, the system realizes high-performance active vibration isolation across six degrees of freedom. The platform can also be optionally equipped with precision positioning control functions. It meets the high-performance vibration isolation requirements for inspection and metrology equipment.
Features:
● Four vibration isolation modules integrated into one platform
● Active vibration control and precision positioning control (optional)
● Meets high-performance vibration isolation requirements and shock
resistance stability requirements
● Coil springs as the main support to achieve tri-directional vibration
isolation
● High-performance active vibration isolation across six degrees of
freedom
● Application Fields: Inspection and metrology equipment.
Specifications:
|
Model |
FSD100A |
FSD100B |
|
Dimensions |
1000*700*150（L*W*Hmm） |
1020*875*166（L*W*Hmm） |
|
Weight |
138kg |
211kg |
|
Horizontal Actuator Force per |
640N |
1280N/640N |
|
Vertical Actuator Force |
640N |
1280N |
|
Max System Power |
700W |
1500W |
|
Passive Element |
Coil Sping |
|
|
Load Capacity |
1000 kg |
|
|
Transmissibility |
≤-5dB@1Hz，≤-10dB@5Hz，≤-25dB@10Hz |
|
|
Active Isolation Bandwidth |
0.8 ~ 150Hz |
|
|
Degrees of Freedom |
6 |
|
