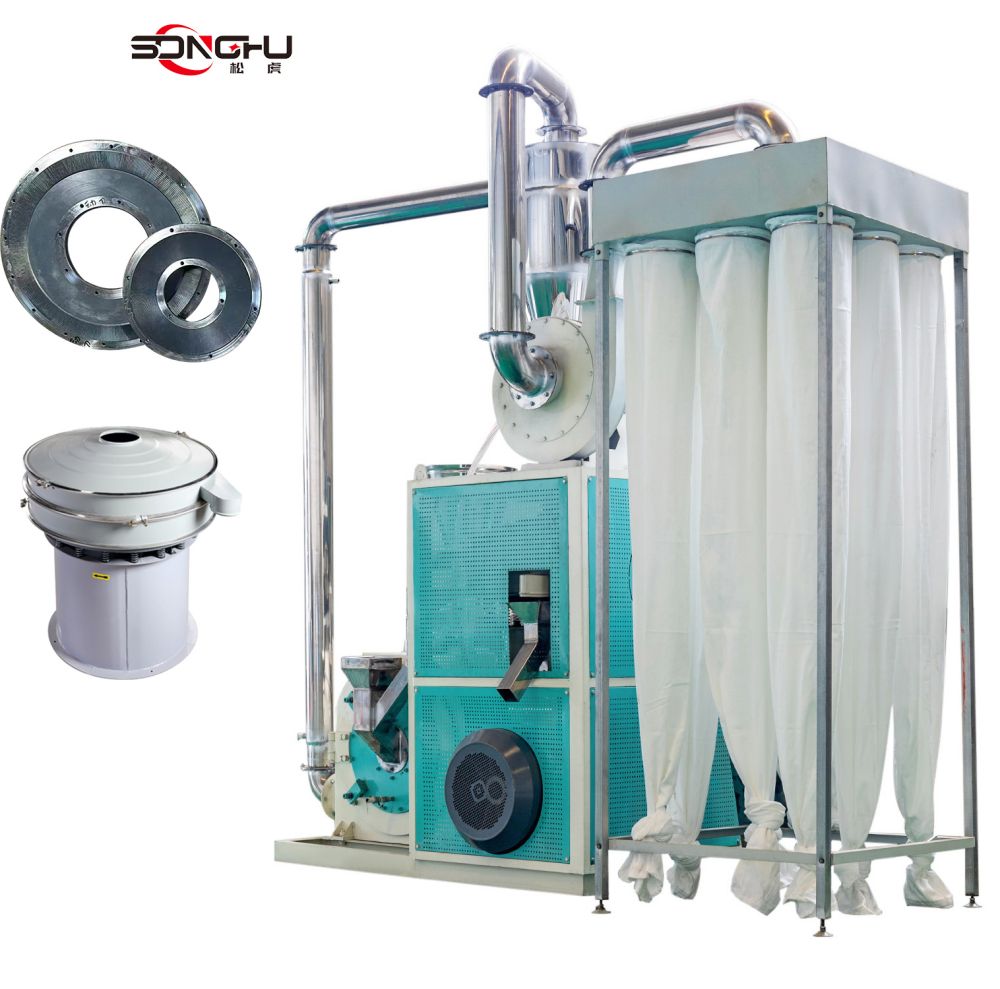

High-Quality PE PP Waste Grinding Machine for Industrial Plastic Recycling
Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mills and PVC crusher equipment.
High-Quality PE PP Waste Grinding Machine
Product Parameters
|
Mode |
SHXR-500 |
SHXR-660 |
SHXR-800 |
|
Pulverizing chamber diameter |
φ483 +1 |
φ583 +1 |
φ783 ±1 |
|
Main motor power (kw) |
37/45 |
55/75/90 |
110/132 |
|
Rotary blade (pc) |
24 |
28 |
36 |
|
Static blade (pc) |
12 |
14 |
19 |
|
Type of cooling |
water, forced air |
||
|
Suction fan power (kW) |
4/5.5 |
7.5/11 |
11/15 |
|
Off fan power (kW) |
1.1/1.5/2.2 |
1.1/1.5/2.2 |
1.1/1.5/2.2 |
|
Vibration screen(mm) |
ZDS-800/1000 |
ZDS-1200/1500 |
ZDS-1500 |
|
Output (kg) |
200-550 |
450-850 |
750-1350 |
|
Weight (kg |
1500 |
1800 |
2000 |
|
Size(mm) |
1700*790 |
1800*790 |
1900*790 |
 |
 |
Technical Features
1. The new disc design is of high quality, with strong resistance, and its
lifespan is twice that of ordinary discs.
2. The newly designed professional bearings have a high rotation rate. At the
same time, using only one drive motor ensures efficient grinding, which greatly
reduces machine operation time and engineering control.
3. Easy installation and maintenance; simply open the door to clean.
4. The entire milling process is sealed, preventing dust leakage.
5. Fully automatic design with automatic feeding, discharging, and
sorting.
6. Grinding gap adjustment is simple; use a feeler gauge and adjust bolts for
fine-tuning.
7. The mill uses a water and wind dual cooling system to prevent overheating
of bearings and other parts.
8. Well-known brand accessories, such as bearings and Siemens motors, ensure
long-term operation, saving the hassle of frequent replacements.
9. A wide range of optional accessories is available, allowing for
professional solutions tailored to the customer's budget and processing
requirements.
Applied Materials
| All Soft Plastic Scraps/ Granules | PE | HDPE |
| PP | PPT | |
| EVA | LDPE LLDPE |
