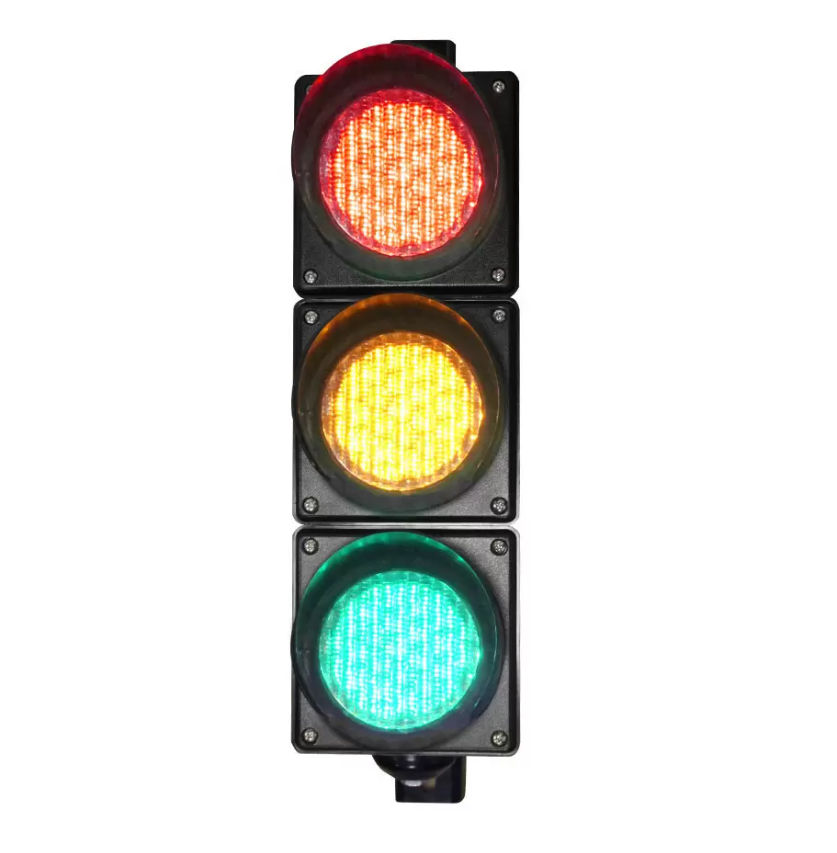

Low Power Red/Yellow/Green Full Ball Traffic Light

The Low Power Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of key components including the lamp board, optical lens, power supply module, and lamp bowl.

Compare
Model:
The Low Power Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of key components including the lamp board, optical lens, power supply module, and lamp bowl. This product is suitable for use at various traffic signal-controlled intersections.

Product Introduction:

The Low Power Red/Yellow/Green Full Ball Traffic Light is a three-unit assembly. The lamp core consists of key components including the lamp board, optical lens, power supply module, and lamp bowl. This product is suitable for use at various traffic signal-controlled intersections.

Functional Features
Mesh circuit design ensures stable product operation
The light board adopts a "mesh" circuit design. When a LED lamp bead fails, it automatically isolates the fault point to ensure that the remaining light beads work normally, maintaining a stable overall display effect.
European standard power supply, more energy-efficient and environmentally friendly
It uses an independently designed Euro standard power supply with excellent energy conversion efficiency and a power factor of up to 0.98, significantly reducing energy consumption and being highly energy-efficient and environmentally friendly.
Constant current drive design, with long service life and low maintenance
It adopts constant current drive technology to ensure stable working current, extend the lifespan of the lamp, and effectively reduce maintenance costs in the later stage.
Excellent electromagnetic compatibility, enhancing device stability
It strictly adheres to European electromagnetic compatibility standards, meeting the strict requirements of developed countries. The total harmonic distortion is less than 10%. It effectively reduces interference to the power grid and other equipment at the intersection, significantly enhancing the overall stability and lifespan of the equipment at the intersection.
Product Model JD100-3-FM31 JD200-3-FM31 JD300-3-FM31 JD400-3-FM31
Light-Emitting Surface (LES)  Size 100mm 200mm 300mm 400mm
Housing Material Polycarbonate housing Polycarbonate housing Polycarbonate housing Polycarbonate housing
Lamp Color â–¡Red  â–¡Yellow  â–¡Green â–¡Red  â–¡Yellow  â–¡Green â–¡Red  â–¡Yellow  â–¡Green â–¡Red  â–¡Yellow  â–¡Green
Mask Color Transparent Transparent Transparent Transparent
Visors Φ130x68mm Φ216x205mm 754.9x220x0.6mm 1060x460x0.6mm
Shape of  LES Round Round Round Round
Operating Voltage / Frequency AC85~264V/47-63Hz AC85~264V/47-63Hz AC85~264V/47-63Hz AC85~264V/47-63Hz
LED Quantity R/Y/G:  45pcs R/Y/G:  90pcs R/Y/G:  168pcs R/Y/G:  205pcs
Lamp Power Consumption

Red full ball ≤ 5 W

Yellow full ball ≤ 5 W

Green full ball ≤ 4 W

Red full ball ≤ 7 W

Yellow full ball ≤ 7 W

Green full ball ≤ 6 W

Red full ball ≤ 11 W

Yellow full ball ≤ 11 W

Green full ball ≤ 9 W

Red full ball ≤ 13 W

Yellow full ball ≤ 13 W

Green full ball ≤ 11 W
LED Wavelength

Red: 616 – 628 nm

Yellow: 589 – 592 nm

Green: 500 – 510 nm

Red: 616 – 628 nm

Yellow: 589 – 592 nm

Green: 500 – 510 nm

Red: 616 – 628 nm

Yellow: 589 – 592 nm

Green: 500 – 510 nm

Red: 616 – 628 nm

Yellow: 589 – 592 nm

Green: 500 – 510 nm
Luminous Intensity 110cd~200cd 230cd ~350cd 400cd~1000cd 400cd~1000cd
LED Lifespan ≥100,000 hours ≥100,000 hours ≥100,000 hours ≥100,000 hours
Insulation Resistance ＞2MΩ ＞2MΩ ＞2MΩ ＞2MΩ

Operating Temperature

 -40℃ to +80℃ -40℃ to +80℃ -40℃ to +80℃ -40℃ to +80℃
Relative Humidity ≤97%RH ≤97%RH ≤97%RH ≤97%RH
Protection Grade IP55 IP55 IP55 IP55

Visual Distance

 ≥300m ≥300m ≥300m ≥300m
Packaging Specifications 1 piece per box, Size: 65 × 22 × 26 cm, Weight: 3.5 ± 0.5 kg 1 piece per box, Size: 92 × 30 × 22 cm, Weight: 7 ± 0.5 kg 1 piece per box, Size: 112 × 39 × 28 cm, Weight: 10 ± 0.5 kg 1 piece per box, Size: 162 × 54 × 22 cm, Weight: 17.7 ± 0.5 kg
