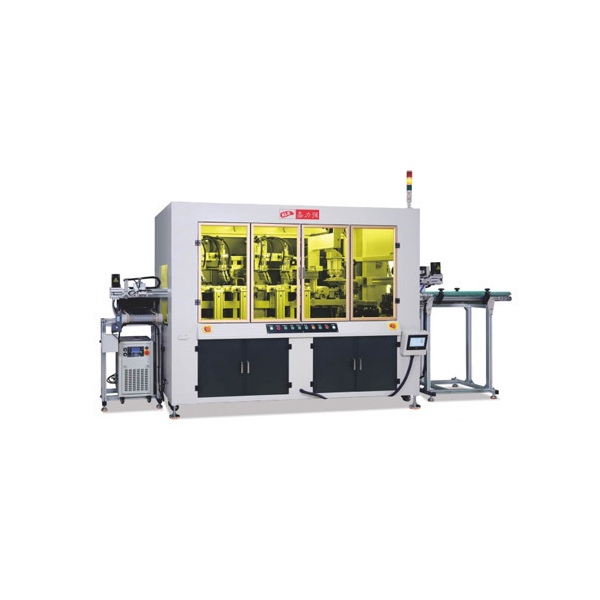

Multidimensional intelligent printing

Product Description

The Multidimensional Intelligent Printing is an advanced automated printing system designed for high-efficiency, multi-color printing on flat and complex surface products. By connecting directly with injection molding machines, it enables fully automated production, allowing products to be printed immediately after molding without additional manual handling.

Equipped with 4-color screen printing and 2-color transfer printing technology, this machine supports up to 6-color printing solutions, meeting the requirements of various flat product printing applications. Its intelligent control system, servo drive structure, and automated loading and unloading functions provide high precision, stable performance, and improved production efficiency.

Key Features

Automated Production Integration

• Direct connection with injection molding machines for seamless production

• Automatic loading and unloading system for reduced labor requirements

• Supports unmanned production processes

• Improves production efficiency and consistency

Multidimensional Printing Capability

• Prints multiple surfaces except the bottom surface

• Suitable for products with different shapes and structures

• Provides flexible printing solutions for various applications

High Precision Printing Control

• Fully servo-driven motion system ensures accurate positioning

• Intelligent server control improves color matching accuracy

• Stable printing quality with repeatable performance

• Easy machine adjustment and parameter setting

Intelligent Operation System

• PLC control system with touchscreen interface

• Simple and user-friendly operation

• One-click recipe parameter reading and saving

• Remote program debugging through private communication server

• Real-time machine monitoring and control

Advanced Curing System

After printing, the machine supports:

• LCD UV cold light curing

• Electronic UV curing

This ensures fast drying, strong adhesion, and excellent printing durability.

Printing Functions

The YS06 intelligent printing machine integrates:

• 4-color screen printing

• 2-color transfer printing

• Maximum 6-color printing capability

• Automatic color management

• Multi-dimensional surface printing

It is suitable for high-quality decorative printing requirements across different industries.

Technical Specifications

Model: YS06

Cup Size:

• Maximum diameter: 90mm

Steel Plate Size:

• 100mm × 400mm

Applicable Product Size:

• Maximum: 275mm × 217mm × 80mm

• Minimum: 120mm × 80mm × 12mm

Maximum Frame Size:

• 330mm × 210mm

Mechanical Speed:

• 20 seconds/cycle

UV Power:

• 280W

Air Pressure:

• 0.6–0.7 MPa

Power Supply:

• 380VAC, 50/60Hz

Total Machine Power:

• 6KW

Equipment Dimensions:

• 4369mm × 1299mm × 1916mm

Optional Functions

The fixture system can be customized with:

• Inflation function

• Suction function

These options help improve product positioning accuracy and adapt to different production requirements.

Applications

The Multidimensional Intelligent Printing Machine is widely used for automatic printing on:

• Plastic molded products

• Flat decorative components

• Consumer product housings

• Packaging products

• Household product parts

• Industrial components

• Customized injection molded products

It is especially suitable for manufacturers requiring automated multi-color printing, high production efficiency, and consistent printing quality.

Advantages

• Fully automatic production process

• Direct integration with injection molding machines

• Multi-color printing capability

• High printing accuracy

• Intelligent PLC control system

• Servo motor precision movement

• Remote debugging support

• Flexible product compatibility

• Reduced labor cost

• Stable mass production performance

The YS06 Multidimensional Intelligent Printing Machine provides manufacturers with an efficient, intelligent, and reliable solution for automated multi-color printing, helping improve production efficiency and product appearance quality.
