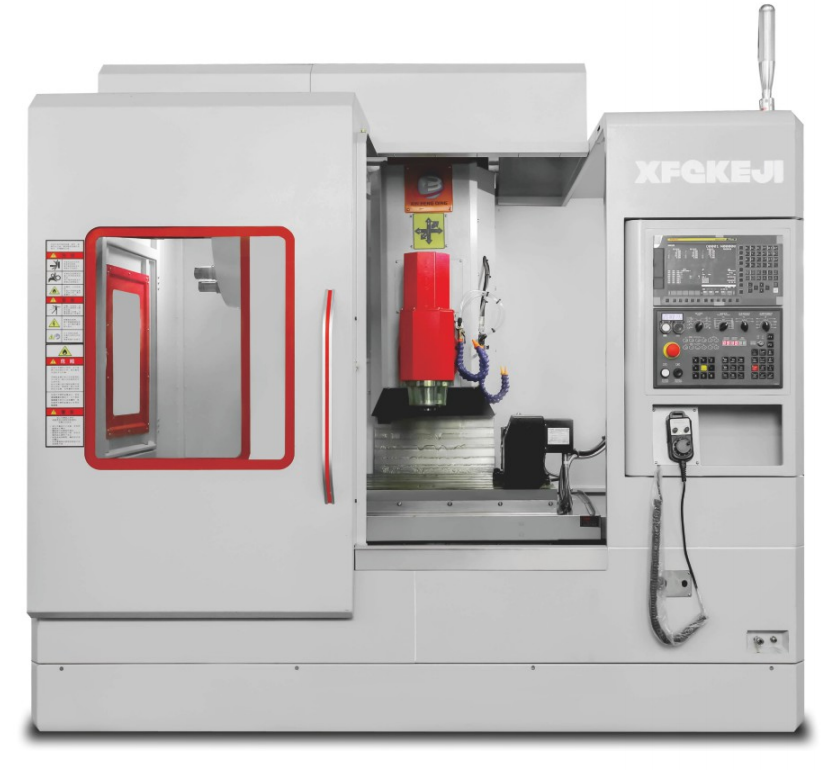

Swing head vertical compound machining center series

Optional configurations of swing head vertical compound machining center series:

■Control system: Mitsubishi, Fanuc, Siemens, Shindai

■Spindle center water outlet, spindle ring water outlet, high-pressure
backwash chip cleaning device (optional)

■Twin screw chip conveyor

■Fourth axis (fifth axis) (optional)

■Oil mist collector (optional)

Standard configuration:

■Mitsubishi M80 control system/oi-mf plus

■Full-cover rice gold

■Cutting fluid system

■Power box heat exchanger

■Automatic power-off automatic lubrication system

■Spindle air blowing

■Steel tapping

■Working light

■Three-color warning light

■Transformer

■Foundation screws and pads

■Tool magazine 24T

■Spindle cooler

■Twin screw back chip removal

■Water and air gun devic

Machine Specifications		unit	XFQ-960	XFQ-1160
Processing range	Worktable travel (X)	Millimeters	900	1100
	Saddle travel (Y)	Millimeters	600	600
	Head travel (Z)	Millimeters	600	600
	Distance from spindle end to table	Millimeters	100-700	100-700
Workbench	Workbench size	Millimeters	1000*620	1200*620
	Workbench load-bearing	Kilogram	600	800
	T-slot (numberwidthpitch)	Millimeters	186100	185112
Spindle	Motor power	kilowatt	15	15
	Speed &ZeroWidthSpace;&ZeroWidthSpace;range	Speed	12000	12000
	Spindle specifications		HSKA63 electric spindle	HSKA63 electric spindle
	B-axis tilt angle		+110°—110°	+110°—110°
A-axis	Fourth axis (255 specifications)		0–360°	0–360°
Tool magazine specifications	Number of standard tool magazines		24	24
	Tool full diameter/length	Millimeters	80/300	80/300
	Tool open diameter/length	Millimeters	150/300	150/300
	Maximum tool weight	Kilogram	8	8
	Tool change time	Era	4 seconds	4 seconds
Guide	X axis*number of sliders	Millimeters	35*6	45*6
	Y axis*number of sliders	Millimete Category: Other Reviews There are no reviews yet. Be the first to review “Swing head vertical compound machining center series” Cancel reply Your email address will not be published. Required fields are marked * Your rating * Your review * Name * Email * Save my name, email, and website in this browser for the next time I comment. Related products Add to cart Nunc tempus facilisis $87.00 Fusce ullamcorper dapibus eleifend. Nullam ornare pulvinar lacinia. Nunc tempus facilisis ullamcorper. Nam sit amet suscipit risus, ut ultricies felis. Vivamus a finibus nisi. Sed quam sem, accumsan eget tristique sit amet, suscipit sit amet augue. Duis dolor dui, sagittis at faucibus ac, varius et sapien. Quick View Add to cart Cras viverra rhoncus metu $77.00 Aenean ut commodo justo. Fusce accumsan erat ut purus mollis, quis fermentum magna luctus. Morbi pulvinar augue lorem, quis molestie ipsum dictum non. Donec malesuada fermentum ex non hendrerit. Sed tempor viverra arcu a ultrices. Suspendisse non malesuada massa. Praesent imperdiet rhoncus nunc, vel fringilla enim lacinia quis Quick View Add to cart Sale! Aenean non pellentesque mauris Original price was: $68.00.Current price is: $55.00. Nullam porttitor pharetra ullamcorper. Praesent varius erat vitae nibh laoreet cursus. Donec suscipit gravida viverra. Suspendisse consectetur ipsum augue, a varius enim tempus a. Phasellus id nibh arcu. Curabitur rutrum vehicula mi id congue. Phasellus vitae leo sodales, pretium turpis non, efficitur eros. Donec fermentum at nisi suscipit vulputate. Quick View Add to cart Sale! Fusce ullamcorper dapibus Original price was: $55.00.Current price is: $41.00. Vestibulum quis augue sem. Curabitur non vehicula elit, et cursus tortor. Quisque placerat velit nec nulla sodales, porttitor mattis tortor porta. Praesent gravida leo nibh, vel semper nulla lobortis vel. Donec nisl velit, iaculis ac dolor eget, blandit elementum urna. Mauris pellentesque posuere pellentesque. Nunc fermentum purus a consequat fringilla. Donec finibus suscipit erat in pharetra Quick View Add to cart Sale! Quisque mi est, blandit sed maximus Original price was: $63.00.Current price is: $57.00. Duis feugiat sapien et augue dignissim porta. Nullam magna velit, laoreet porta vestibulum nec, auctor sed dui. Integer ac sodales enim. Quisque magna est, mollis euismod nibh in, elementum congue orci. Cras viverra, elit vitae iaculis efficitur, turpis urna sodales eros, vel finibus lacus elit sit amet dolor. Praesent at erat in purus pretium laoreet. Quick View Companies Trade Discover the ultimate B2B trading platform at Companies Trade. Our seamless solutions empower businesses to thrive in the world of B2B trade. Connect with trusted partners, streamline transactions, and unlock success with Companies Trade. News Hello world! Aquest llibre és Citació d’aquesta paraula La literatura llatina del Highly Rated Products Pellentesque dignissim sapien semper Rated 5.00 out of 5 $7,800.00 – $9,800.00 Nulla feugiat felis tempor sem Rated 4.00 out of 5 $7,800.00 – $10,000.00 Products Intelligent Stockyard Nunc tempus facilisis $87.00 © 2025 Companies Trade Designed by Themehunk Cart Your Cart is Empty Back To Shop Payment Details Sub Total $0.00 View cart Checkout Register
