Wire Mesh Cable Tray

Wire Mesh Cable Tray for Flexible Cable Management Solutions

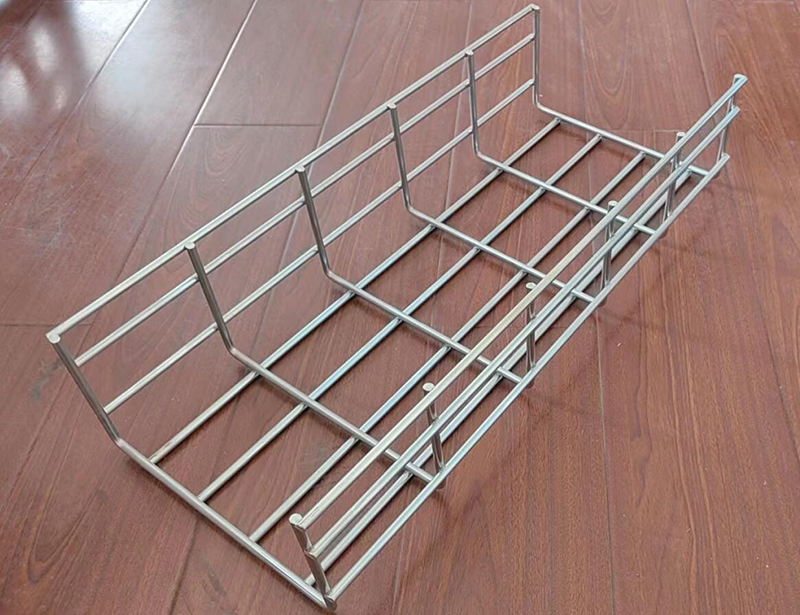

Xinba Electric Wire Mesh Cable Tray is a lightweight and highly adaptable cable management solution designed for modern electrical, communication, and industrial infrastructure. Built with precision-welded steel wire, it provides a strong yet flexible support structure for routing power, data, and control cables in complex installation environments. Its open-grid design ensures efficient airflow, simplified maintenance, and long-term operational stability across a wide range of applications.

Structural Design and Engineering Strength

The wire mesh cable tray is manufactured using high-strength welded steel wire, forming a rigid yet lightweight grid structure. This design ensures balanced load distribution while maintaining flexibility for on-site adjustments. Unlike enclosed cable containment systems, the open structure reduces unnecessary material weight while still delivering strong mechanical support.

The uniform welding points enhance structural integrity, allowing the tray to maintain stability even under continuous cable loading. This makes it suitable for both horizontal and suspended installations where structural reliability is essential.

Excellent Ventilation and Heat Dissipation Performance

One of the key advantages of this wire mesh cable tray system is its open structure, which allows continuous airflow around installed cables. In high-density wiring environments, heat accumulation can negatively impact cable performance and insulation lifespan.

The mesh design promotes natural ventilation, helping to reduce cable temperature without requiring additional cooling systems. This passive heat dissipation improves operational safety and extends the service life of electrical and communication cables, especially in environments with continuous power load.

Flexible Installation and Easy Expansion

Installation flexibility is a major advantage of the wire mesh cable tray system. The structure can be easily cut, bent, and shaped on-site without the need for complex tools or prefabricated components. This allows installers to quickly adapt to architectural changes or routing adjustments during construction.

The modular nature of the system also supports easy expansion. Additional cable lines can be added without dismantling existing structures, making it highly suitable for projects with evolving electrical requirements. This flexibility significantly reduces installation time and labor costs.

Lightweight Structure with High Load Capacity

Despite its lightweight design, the wire mesh cable tray offers excellent load-bearing performance. The welded steel construction provides strong structural support while reducing overall weight, which helps minimize stress on building ceilings and support frames.

The reduced weight also simplifies transportation and handling, making it more efficient for large-scale projects where long cable tray runs are required. This balance between strength and weight makes it a cost-effective solution for modern infrastructure development.

Clean Cable Layout and Visual Organization

A well-organized cable system is essential for operational efficiency and maintenance safety. The open mesh structure provides clear visibility of all installed cables, allowing technicians to easily identify routing paths and cable conditions.

This improves troubleshooting efficiency and reduces downtime during maintenance or system upgrades. A clean and structured layout also enhances the overall appearance of electrical installations, making it suitable for visible infrastructure environments such as commercial buildings and data centers.

Corrosion Resistance and Material Options

To meet different environmental requirements, Xinba Electric offers multiple material configurations for wire mesh cable tray systems. These include electro-galvanized steel for indoor environments, hot-dip galvanized steel for industrial and semi-outdoor applications, and stainless steel for high-moisture or corrosive environments.

Each material option is selected based on durability requirements and environmental exposure conditions, ensuring long-term performance and structural stability across various installation scenarios.

Wide Compatibility with Installation Accessories

The wire mesh cable tray system is designed to be fully compatible with a wide range of installation accessories. Components such as bends, tees, crosses, reducers, and mounting brackets allow engineers to create complex and customized cable routing layouts.

This compatibility ensures that the system can be integrated into both simple and highly complex infrastructure designs without compromising structural consistency or installation efficiency.

Application Environments

Wire mesh cable tray systems are widely used in multiple infrastructure sectors due to their flexibility and performance advantages. Common applications include data centers, server rooms, and IT infrastructure environments where airflow and cable organization are critical.

They are also used in commercial buildings, office complexes, airports, and large public facilities that require structured and scalable cable management systems. In industrial environments such as factories, workshops, and production facilities, the system supports heavy electrical and communication cable routing.

Additionally, it is suitable for infrastructure projects requiring fast installation, flexible expansion, and long-term maintenance efficiency.

Maintenance Efficiency and Operational Benefits

Maintenance is simplified due to the open structure of the system. Technicians can easily inspect cables without dismantling trays, which significantly reduces downtime during repairs or upgrades.

The visibility of cable routing also helps in early detection of wear or potential issues, allowing preventive maintenance before system failures occur. This improves operational reliability and reduces long-term maintenance costs.

Conclusion

Xinba Electric Wire Mesh Cable Tray provides a practical and efficient solution for modern cable management needs. Its combination of lightweight structure, strong mechanical performance, excellent ventilation, and installation flexibility makes it suitable for a wide range of industrial and commercial applications.

With multiple material options, modular compatibility, and easy maintenance features, it delivers a reliable foundation for safe and organized electrical infrastructure.
